Discoverying and navigating through Go linkname compiler directives
Go supports a number of directives which can influence the behaviour of the compiler.
These compiler directives are in the form of magic comments, probably because of some historical reasons, combined with the fact that the Go developers don’t really like extending further the syntax of the language, in order to keep it small and simple.
One interesting compiler directive is linkname, which allows us to declare a symbol in one package, which happens to be an alias for a symbol in another package. The symbol to which we link can even be an unexported symbol, allowing us to break the encapsulation rules as a whole and make a package-internal symbol exported via another symbol in a different package.
The following example shows how we can use the linkname directive in order to
expose an unexported symbol from one package via another package.
Lets create a new Go module and the directories for our example packages.
mkdir linkname-example
cd linkname-example
go mod init linkname-example
mkdir -p pkg/{foo,bar}
Our example project layout looks like this.
[linkname-example] > tree .
.
├── go.mod
└── pkg
├── bar
└── foo
4 directories, 1 file
A few words about the project structure – the foo package will contain an
unexported symbol, which usually we cannot access from another
package. However, we will expose this unexported symbol from foo package via
the bar package using the linkname compiler directive.
Lets start with the foo package first. This is what our pkg/foo/foo.go file
looks like.
// pkg/foo/foo.go
package foo
import (
"fmt"
_ "unsafe"
)
// Use go:linkname directive here to make things clearer to the reader
// that this particular symbol will be referenced by other symbols.
//
// Using go:linkname violates the encapsulation of symbols, and allows
// other packages to refer even to un-exported symbols.
//
// For that reason importing "unsafe" is a requirement.
//go:linkname foo
func foo() {
fmt.Println("foo() was called")
}
In the code above we can see a single foo function, which is unexported, and
it also contains the linkname directive. This is the function to which we will
be creating an alias.
And this is what our pkg/bar/bar.go file looks like, from which we will expose
the foo.foo symbol.
// pkg/bar/bar.go
package bar
import (
"fmt"
_ "linkname-example/pkg/foo" // We need to import `foo' here as well
_ "unsafe" // Importing unsafe is required
)
// f() here is an alias for [foo.foo]
//
//go:linkname f linkname-example/pkg/foo.foo
func f()
func Bar() {
fmt.Println("Bar() was called")
f()
}
A few words about the code above. We have one exported symbol - the Bar
function, which simply prints Bar() was called, and then it calls the
unexported f() function from the same package.
The f() function does not look like a regular Go function, since it lacks a
function body. It is a function declaration only. It also uses the linkname
directive in order to link the bar.f symbol to the foo.foo symbol.
Using the linkname directive also requires that we import the unsafe
package, since Go requires it, as documented in the code above.
Additionally, we had to import the linkname-example/pkg/foo package, so that
it is part of the import graph, in order to find the respective pkg/foo.foo
symbol. If pkg/foo was already part of the imports because of a transitive
dependency, we would not have to explicitly import it, but that is not the case
in this example.
Finally we can wire things up in our main.go file and simply call the exported
bar.Bar() function.
// main.go
package main
import "linkname-example/pkg/bar"
func main() {
bar.Bar()
}
Running this program prints the following, and we can see that even though
foo.foo was unexported we have successfully called it via the bar.Bar()
function and the symbol alias bar.f.
[linkname-example] > go run main.go
Bar() was called
foo() was called
This is not a new or unconventional thing at all. The Go standard library uses this all over the place in order to share re-usable code between internal-only packages without having to make such symbols exported in the first place.
Another reason for the stdlib to use linkname is to avoid circular import
dependencies. For example the testing/synctest package imports the testing
package, since it needs testing.T because it is used by the
testing/synctest.Test function.
Internally, testing/synctest.Test calls
testing/synctest.testingSynctestTest, which is a pull linkname. The push
linkname symbol is testing.testingSynctestTest.
testing/synctestimportstesting(because it needstesting.T)testing/synctest.Testcallstesting/synctest.testingSynctestTest(a linkname pull symbol)testing.testingSynctestTestprovides the function body and is the linkname push symbol
Now, we could have moved the function body of testing.testingSynctestTest into
testing/synctest.testingSynctestTest, but the thing is that
testing.testingSynctestTest needs to work with lots of other internal-only
symbols in testing, e.g. testing.tRunner function, the testing.common
struct, etc. We either have to linkname all of these, or make them exported.
My best guess here is that the idea behind having testing.testingSynctestTest
as a linkname push symbol is to keep the changes to a minimum when introducing
the testing/synctest package. In the end we have one linkname push symbol in
testing package, which is better than exposing everything else in testing
via additional linknames, or making them exported.
The tradeoffs however are that these magic comments don’t really have a concrete AST representation, unlike in other languages like Lisp or Rust. If we inspect the AST tree we would find these directives as plain Comment nodes in Go, instead of something like Directive.
Fortunately, gopls already comes with
support for parsing linkname directives,
however support for is partial. For example, gopls can jump to a referred
symbol when using the 2-arg form of linkname. However, it does not support the
find references action, which allows us to view symbols that link to a given
symbol, which uses the 1-arg form.
It is also worth noting here that recent Go versions (> 1.23.x) come with
tightened up restrictions about using linkname directive when linking to a
symbol in the stdlib. See the following links for additional information.
In order to fill that gap and be able to navigate through all the linkname
symbols in the stdlib I’ve built a tool for this purpose only.
The tool can be found in the dnaeon/golinkname repo and can be installed via the following command.
go install -v github.com/dnaeon/golinkname/cmd/golinkname@latest
The golinkname tool supports a number of sub-commands, which allow you to
generate an index of all linkname directives in a given Go module in JSON
format, list a user-friendly table of the discovered symbols, and find related
symbols.
$ golinkname help
NAME:
golinkname - Lookup //go:linkname directives in a Go module
USAGE:
golinkname [global options] [command [command options]]
COMMANDS:
index Emit a JSON array of every directive in the module
refs Find directives whose target is exactly <pkgpath>.<name>
related Find every directive related to <pkgpath>.<name>
list Display a table of discovered directives
help, h Shows a list of commands or help for one command
GLOBAL OPTIONS:
--help, -h show help
We can list all linkname symbols from the current Go module using the following command.
golinkname list
Running the list sub-command against the example project we’ve built before we
can see these symbols.
$ golinkname list --dir /path/to/linkname-example
FILE:LINE FORM DIR LOCAL TARGET RESOLVED WARNINGS
pkg/bar/bar.go:13 func/two-arg pull f linkname-example/pkg/foo.foo pkg/foo/foo.go:19 -
pkg/foo/foo.go:18 func/one-arg push foo - - -
In order to list all linkname symbols from the standard library we can use the
following command.
golinkname list --dir "$(go env GOROOT)/src"
Example snippet from the command above looks like this.
$ golinkname list --dir "$( go env GOROOT)/src"
FILE:LINE FORM DIR LOCAL TARGET RESOLVED WARNINGS
arena/arena.go:87 func/two-arg push reflect_arena_New reflect.arena_New reflect/arena.go:18 -
arena/arena.go:92 func/one-arg pull runtime_arena_newArena - - -
arena/arena.go:95 func/one-arg pull runtime_arena_arena_New - - -
arena/arena.go:101 func/one-arg pull runtime_arena_arena_Slice - - -
arena/arena.go:104 func/one-arg pull runtime_arena_arena_Free - - -
arena/arena.go:107 func/one-arg pull runtime_arena_heapify - - -
crypto/fips140/enforcement.go:40 func/one-arg pull setBypass - - -
crypto/fips140/enforcement.go:43 func/one-arg pull isBypassed - - -
crypto/fips140/enforcement.go:46 func/one-arg pull unsetBypass - - -
crypto/internal/fips140/cast.go:16 func/two-arg pull fatal crypto/internal/fips140.fatal crypto/internal/fips140/cast.go:17 -
crypto/internal/fips140/check/check.go:32 var/two-arg-extern pull Linkinfo go:fipsinfo - -
crypto/internal/fips140/check/checktest/test.go:20 var/two-arg pull RODATA crypto/internal/fips140/check/checktest.RODATA crypto/internal/fips140/check/checktest/test.go:21 -
...
The index sub-command returns a JSON index of the discovered linkname
directives and their respective symbols.
golinkname index --pretty
The result from the index sub-command is what can be used to build
integrations with other tools, editors, or IDEs. An Emacs package which wraps
golinkname is available in the
editor/emacs
directory, which lets you list, and navigate through the linkname directives in
a Go codebase.

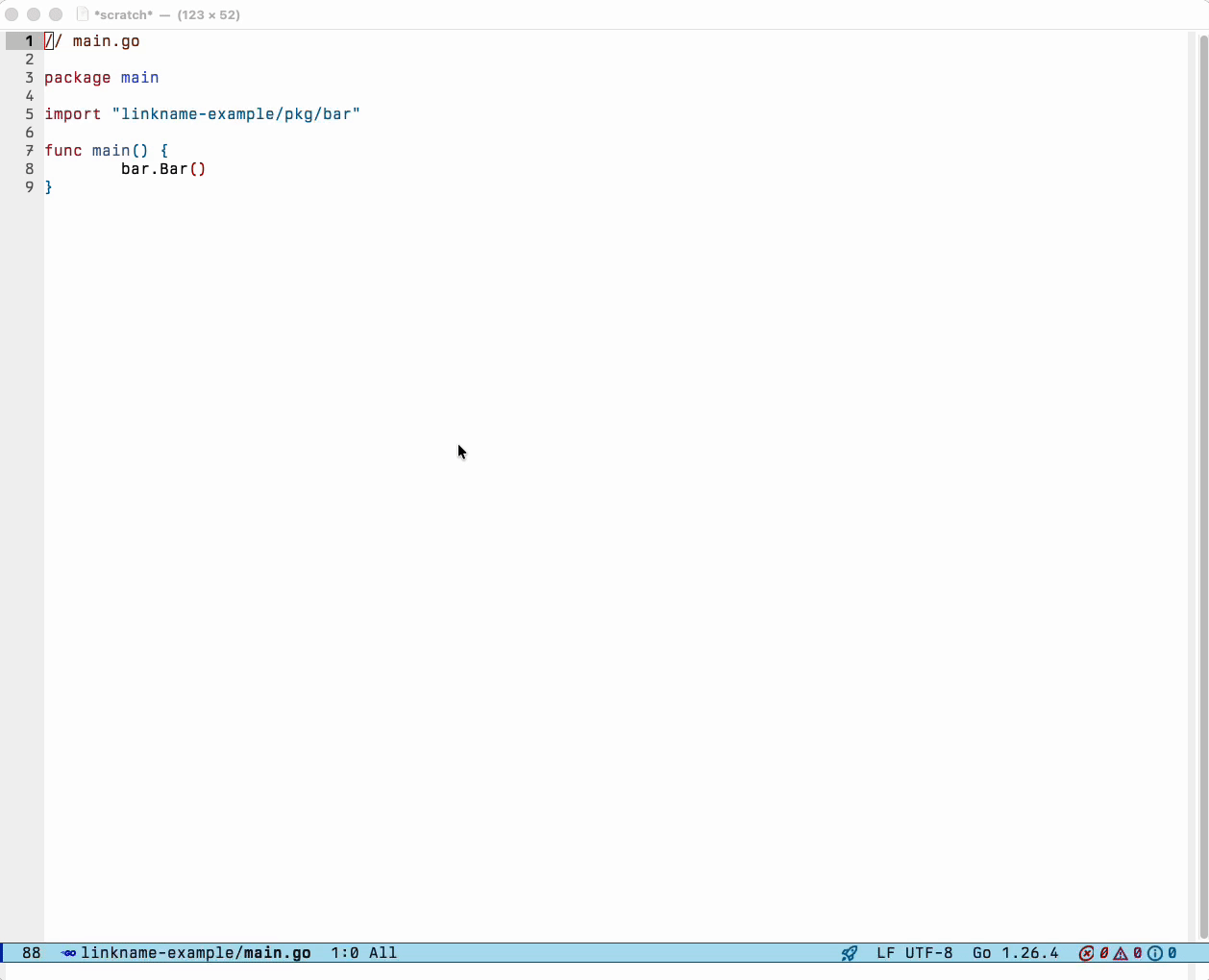

The following demo shows the Emacs integration with golinkname, which takes
advantage of the golinkname index.
We can also find who references a given symbol via a linkname directive
using the refs sub-command.
$ golinkname refs linkname-example/pkg/foo.foo | jq
[
{
"schemaVersion": 1,
"file": "pkg/bar/bar.go",
"line": 13,
"col": 1,
"form": "two-arg",
"direction": "pull",
"localName": "f",
"declName": "f",
"declKind": "func",
"target": {
"raw": "linkname-example/pkg/foo.foo",
"pkgPath": "linkname-example/pkg/foo",
"name": "foo",
"resolved": [
{
"file": "pkg/foo/foo.go",
"line": 19,
"col": 6,
"inModule": true
}
]
},
"hasUnsafeImport": true,
"warnings": []
}
]
The example above shows that the pkg/bar.f symbol references the pkg/foo.foo
symbol via a linkname directive, which is exactly what the example project
did.
If we run the same command, but against the pkg/bar.f symbol we would see that
nobody references it, which is correct, since nobody has a linkname reference
to it.
$ golinkname refs --dir /tmp/linkname-example linkname-example/pkg/bar.f | jq
[]
However, we can see to which other symbols pkg/bar.f is related.
$ golinkname related --dir /tmp/linkname-example linkname-example/pkg/bar.f | jq
[
{
"schemaVersion": 1,
"file": "pkg/bar/bar.go",
"line": 13,
"col": 1,
"form": "two-arg",
"direction": "pull",
"localName": "f",
"declName": "f",
"declKind": "func",
"target": {
"raw": "linkname-example/pkg/foo.foo",
"pkgPath": "linkname-example/pkg/foo",
"name": "foo",
"resolved": [
{
"file": "pkg/foo/foo.go",
"line": 19,
"col": 6,
"inModule": true
}
]
},
"hasUnsafeImport": true,
"warnings": []
}
]
The output above shows that pkg/bar.f is related to pkg/foo.f, because it
references it.
Make sure to check the dnaeon/golinkname repo for additional details.
